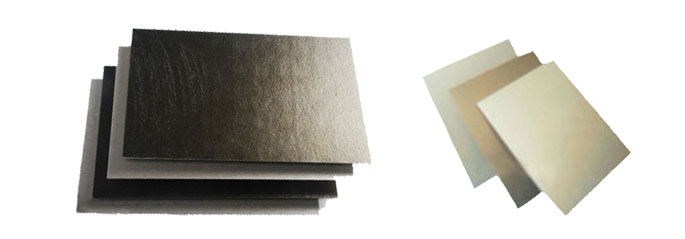

Micanite Shet Plate

Micanite Sheets are the most preferred product, offered by us. These Micanite Sheets are also named as the Heat Resistance Micanite Sheets (HRM Sheet) in the global markets.

Scope : Heat Resistance Micanite Sheets, which are used for the assorted industrial purposes, splittings with shellac or other suitable resin, bond content kept low. These plates are hard & rigid can be worked maximum temperature. It also be punched, stamped to any desire size and thickness

1. Application:

    Heat Resistance Mica Sheet is used in heating elements, furnace insulations, covering plates, high temperature applications, cylindrical resistance heaters, heat barriers, Oven, High Temperature applications, Forgings, Foundries, Ground in Oven, High Temperature applications, forgings, foundries, ground insulation etc.

2. Glass Mica Glass Sheet:

    Being one of the highly acknowledged manufacturers and suppliers of Glass Mica Glass Sheet, we are offering a featured range of Glass Mica Glass Sheet at most affordable prices.

3. Glass Mica Glass Sheet Class ‘F’ & ‘H’ :

    · Scope : This specification lies down of Flexible Glass Mica Glass Sheet. Suitable for insulation inside of the induction furnace, they are wrapped insulation of motors, generators and transformers slot liner ground insulation.

4. Construction:

    The sheets shall be made up of several layers of Jharkhand origin Mica Splittings bonded with an ‘F’ & ‘H’ class insulation varnish reinforce both side with 1.7 mils thick Glass Fabric, The varnish shall be cured to the tack free.
    · Size Of Sheets :
    o 500 mm x 1000 mm
    o 600 mm x 900 mm
    o 1000 mm x 1000 mm

5. General :

    Flexible Glass Mica Glass shows excellent thermal resistance, electrical properties, and Flexibility to satisfactory at ambient Temp. Glass mica glass sheet also be made by mica paper in as usual sizes, available thickness: 0.13 to 0.4 mm.

6. Class of Insulation:

  • ‘H’ CLASS THERMAL : Continuous services 180°C and Intermittent services up to 350°C
  • ‘F’ CLASS THERMAL : Continuous services 150°C and Intermittent services up to 200°C
  • Self Life : Six month from the date of manufacturing if, the materials are kept/stored at 20°c.
7. Mica Blocks:


    We are the most trusted manufacturer of Mica Blocks, which are available in three different variants like Ruby Mica Blocks, Green Mica Blocks, and Black Spotted Mica Blocks. We have availed these Mica Blocks from various different origins in India. They all have mostly similar properties beside the color & temperature resistance. Their dielectric properties differ too. Based on the optimum quality of these Mica Blocks, we have statured on top among the listed manufacturers of Mica Blocks.

8. Types:
  • Ruby Mica Blocks
  • Green Mica Blocks
  • Black Spotted Mica Blocks
9. Properties:
  • Ruby mica is the most sustainable form of mica blocks in all forms across all types
  • Easily cut according to the specifications and drawings
  • Fabricated into a myriad range of products
  • Having numerous applications in diversified field
  • Minimum thickness of each sheet 0.18mm (0.007 inch)
  • Graded according to the quality as clear & slightly stained(CL&SS)
  • Good stained(GS)
  • Stained “B”
  • Heavily stained(HS)
  • Densely stained(DS)
  • The area range of 4.8sq.cm to 650sq.cm (0.75 sq. Inch to 100 & up sq. Inch))
  • Average sheet thickness of each mica block varies in between 0.18 to 0.40mm (0.007 inch to 0.016 inch
