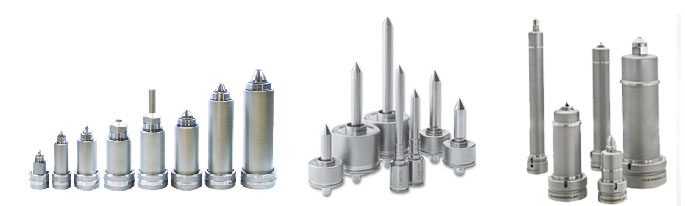

Injection Tip

High Thermal conductivity hot tip nozzles are used in hot runner for easy filling under reduced pressure, so that there is proper consistency in moulding. Various types of hot tip nozzles are available for various applications.

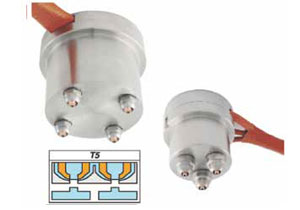

Hot Sprue used for single cavity mould and hot tip nozzles are used for multiple cavity moulds and shot weight up to 2 kg. Generally two types of nozzle tips are available: Open gate nozzles and Torpedo gate nozzles.

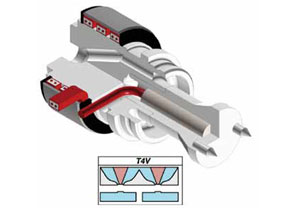

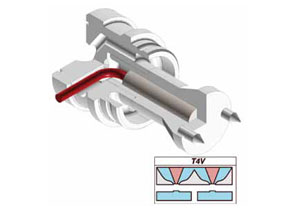

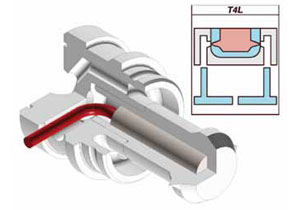

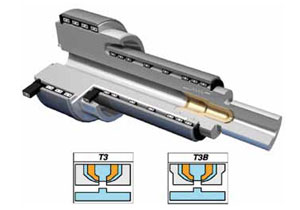

Torpedo gate nozzles are applicable where maximum gate finishing is required. Both the nozzles are useful for runner gates like Edge gate, Fan gate, Flash gate, Ring gate, Sprue gate and sub gate. Nozzle length up to 600 mm and diameter up to 32 mm are available.

Nozzle special material, selected high quality materials, so robust for better treatment of heat, portable, corrosion resistant, high performance heat when delivered, all metal parts are made of imported raw materials, worked with better tools.

Using the J-type thermocouple to get the actual temperature much more accurate, with excellent ability to change color and is suitable for engineering plastic and plastic fireproof.

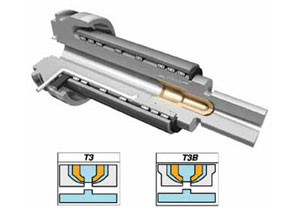

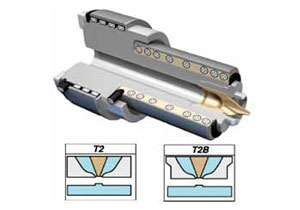

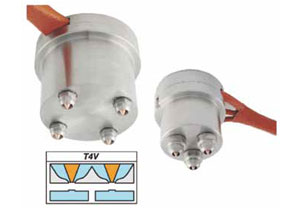

1. EUROHEATERS NOZZLE

EUROHEATERS NOZZLE takes the especial material,not only select the high quality material, also do the heat treatment for the body, bottom and bush to get the best integrated property, wearable, corrosion resistant prevent distortion, conduct heating etc.

Better than many other nternational famous brand. Euroheaters nozzle takes the optimal germany band heaters, using the international type J thermocuple to get the actual temperature much more accurate, with the excellent capability for changing color and it is suitable for engineering plastic and anti-fire plastic. EUROHEATERS can ofter various standar nozzle and their spare parts, all the metal parts are made of raw material imported and formed by precision treatment and tooling. All the heating elements and thermocuple are origin from Germany

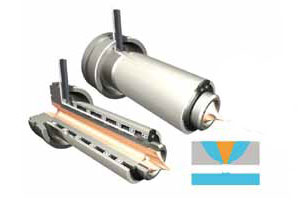

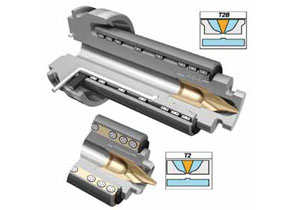

2. Pin point gate nozzle

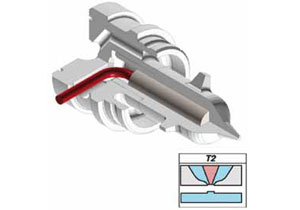

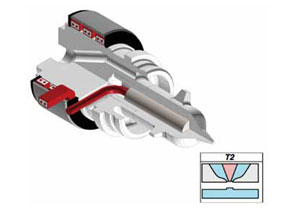

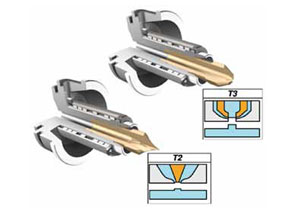

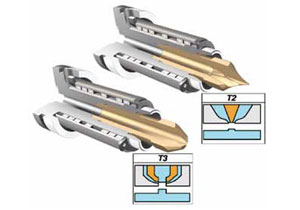

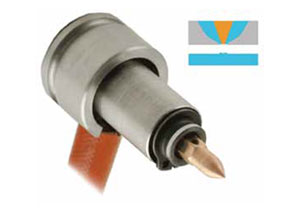

Pin point gate is the most popular open nozzle at present could ofter different types of point gate nozzle according to the size of gate and plastic.

EUROHEATERS on improve the cutting speed rate of plastic melt, reduce the melt viscosity, lead to easily fill in mould, it is more effective for cutting the sensitive melting plastic like PP, PE, ABS. Malting temperature will go up due to friction when go by pin point gate, lead to dacline viscosity, increase the flow.

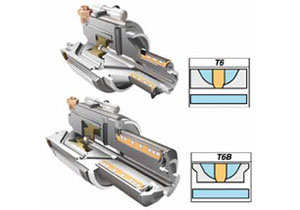

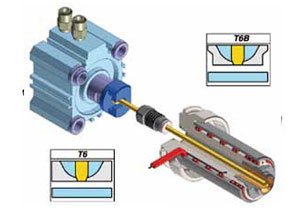

3. Valve gate nozzle

The valve needle controlled by pneu matic or hydraulic pressure, can shorten the cycle time, improve the injection speed.

Without the gate mark, can improve the surface quality, widely used for the fine surface tooling, the plastic with high requirement for quality, such as the medical plastic. With good adaptability for material, can used for the difficult molding material, reach the best injection.

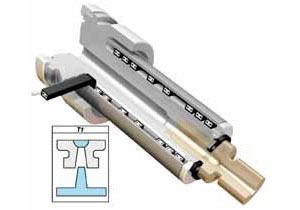

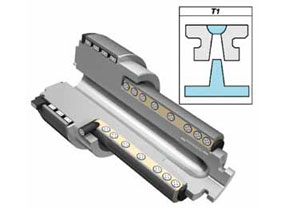

4. Direct gate nozzle

Direct sprue

Regrind resin will be on the plastic parts surface

The optimal color change ability, used for large size and small high dersity engineering plastic mould, flow index (EHMFI).

With good adaptability for material can used for the difficult molding material, reach the best injection. Solve molding technology for the special components.
